Precision Welding Automation Boosts Boiler Production in Ireland

Client Profile

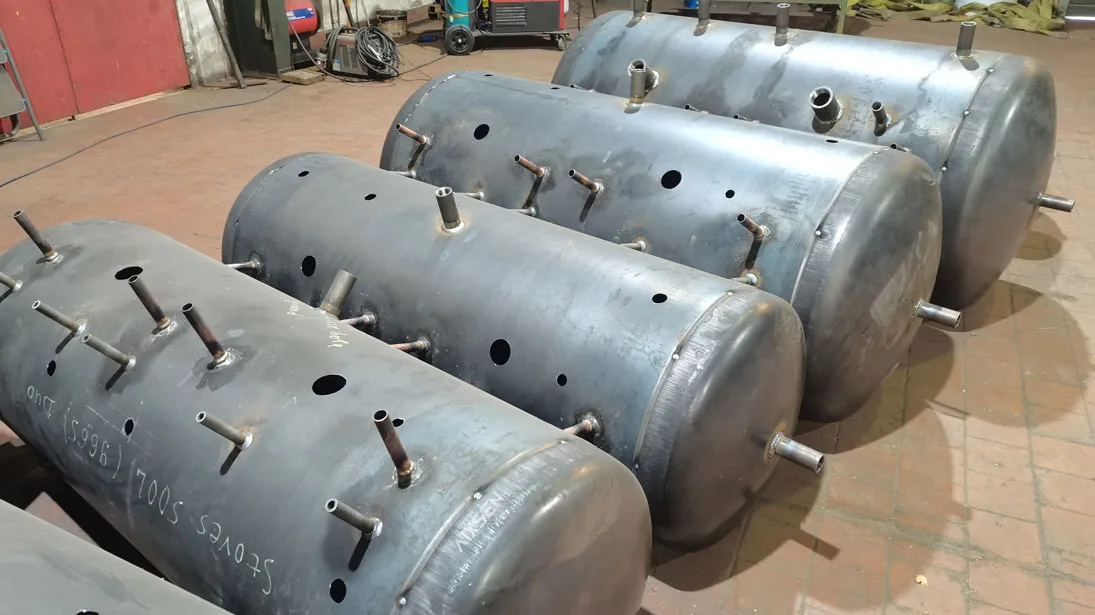

In September 2024, a boiler manufacturer in Ireland faced mounting challenges in their welding operations. With increasing demand for high-quality containers, their reliance on manual welding processes became a critical bottleneck. The company sought an automation partner to address three distinct yet interconnected production challenges.

Challenge 1: Inconsistent Circumferential & Socket Weld

The client’s existing process for welding circumferential seams and socket weld relied on manual MIG welding with rotating rollers. This approach presented several pain points:

• Unstable weld bead appearance with frequent undercut and porosity
• Pass rates fluctuating between 65–80%, leading to costly rework
• High dependence on skilled welders, with training cycles disrupted by staff turnover
• Production delays during peak periods due to labor-intensive processes

Our Solution

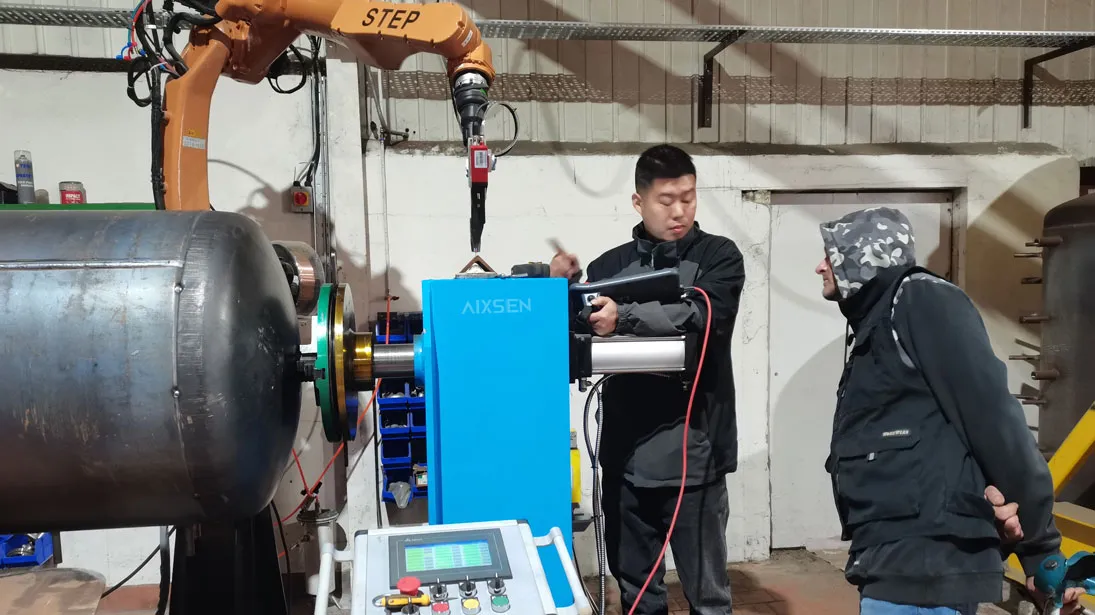

Deployed a 2-meter reach robotic welding cell featuring:

• Articulated robot with ±0.05mm repeatability
• Positioner with dynamic speed matching for consistent torch angles
• Integrated vision tracking system compensating for part variations
• Optimized MIG welding process parameters for carbon steel vessels

Outcomes

• Achieved uniform weld profiles meeting ASME Section IX visual standards
• Stabilized pass rates at 97–98% across production batches
• One robotic cell replaced 4–5 manual stations with 24/7 operation capability

Challenge 2: Longitudinal Seam Integrity Issues

For straight seam welding, the client used manual TIG welding which caused:

• Frequent leaks in pressure testing (15% failure rate)
• Slow deposition rates (1.2m/hr) creating production bottlenecks

Our Solution

Implemented a dedicated longitudinal seam welding system with:

• Custom-designed carriage mechanism for precise torch guidance
• Automated wire feeding & gas shielding management
• Closed-loop heat input control

Outcomes

• Near-perfect 99.8% pressure test pass rate
• Production speed increased to 3.5m/hr with consistent quality

Challenge 3: Large-Diameter Vessel Fabrication

For vessels exceeding 2 meters diameter, manual welding was physically impractical due to:

• Accessibility constraints for welders
• Impossibility of maintaining consistent torch angles

Our Solution

Developed a custom SAW (Submerged Arc Welding) system featuring:

• Boom-mounted welding head with adaptive height control
• Real-time monitoring interface for operator oversight
• Automated flux recovery and recycling

Outcomes

• Enabled fabrication of large-scale vessels previously unattainable manually
• Eliminated weld defects caused by accessibility constraints
